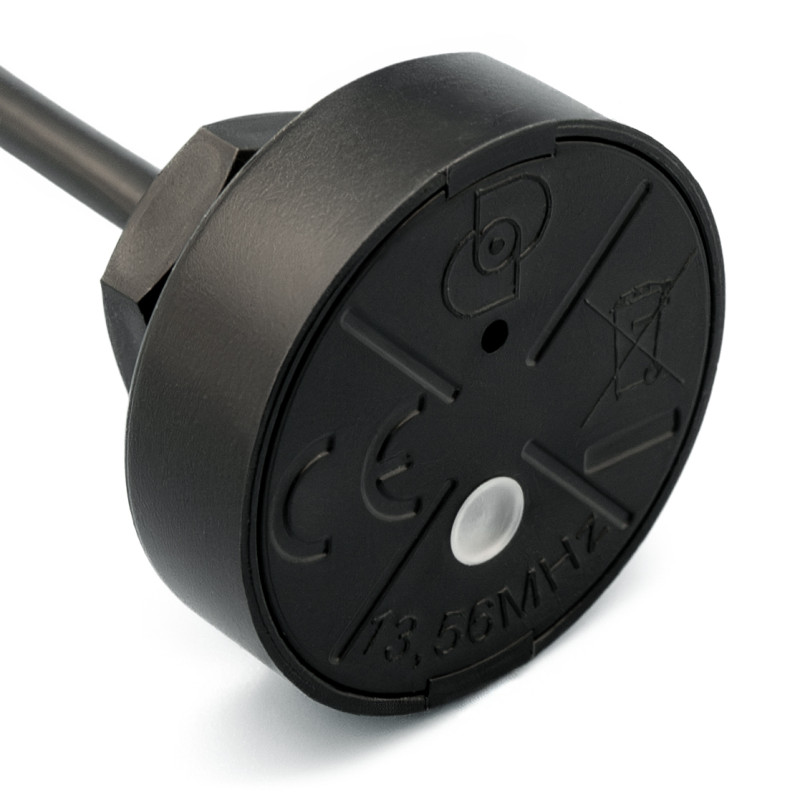

RS-H0-06 BZ M12 MS: RFID READER 13,56 MHz

21,00 €
  • The data that are read out from a transponder are transferred with UART. Standard transmission speed: 9600 bps
  • Bicolour (green/red) LED integrated
  • Additional buzzer that can provide sound notification
  • Designed to be mounted with M12 thread
  • Standard cable length: 40 cm, 6 wires
  • Compatible with: MIFARE CLASSIC/ULTRALIGHT, DESFIRE, HID ICLASS, FELICA, NFC, ISO/IEC14443-3-A, ISO/IEC14443-3-B, ISO 15693, ISO 18092


reliable quality control



instant shipping



win-win cooperation

RS-H0-06 BZ M12 MS

Data sheet

Frequency
13.56 MHz
Interface
UART
Tags
ISO/IEC14443-3-A, ISO/IEC14443-3-B, ISO 15693, Felica, iClass, ISO 18092
Other
Buzzer
LED
Power supply
9-30 VDC
Current
150 mA
Range
3-7 cm
